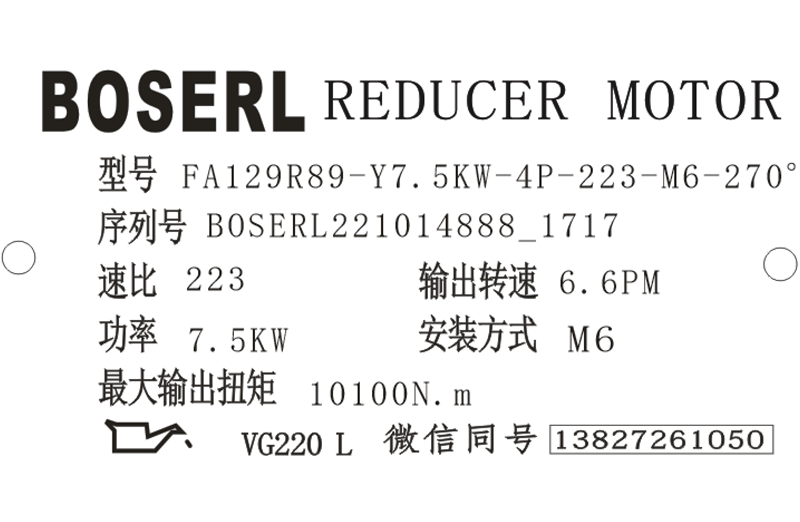

FA129R89減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FA129R89減速機選型樣本。

FA129R89-Y7.5KW-4P-223-M6-270°

FA/R：系列代號

129/89：減速機規格代號

Y：電機

7.5KW：電機功率

4P：電機級數

223：減速機傳動比

M6：減速機安裝位置

270°：接線盒位置

FA129R89減速機電機使用環境要求：

環境溫度-5~40C；環境濕度85%；海拔高度1000m以下。齒輪減速電機

請勿在爆炸環境、易燃性氣體環境、腐蝕性環境以及漏水的環境下使用此減速電機；

請勿強行彎曲、拉扯或夾住電源、電纜線和電機導線；

電機安裝完成后，必須使用接地線良好接地，接地線位置位于接線盒上面；

安裝、連接、檢查等須由專業技術人員進行；

安裝環境需干燥且通風良好，周圍溫度-5~40℃之間若需高溫或低溫環境下運行，請?zhí)貏e說明；

齒輪減速電機需安裝在平整且堅固的機座上。

備注：大部分電機在50Hz交流電下的聲壓級都不超過70dB(A)。平行軸斜齒輪減速機

FA129R89減速機電機使用使用前事項：

收貨后：請立即檢查有無運輸損壞。如有損壞請立即通知運輸公司。必要情況下不得對設備進行調試運行；請檢查產品型號、電機功率、電機額定電壓、安裝方式及出力軸尺寸是否符合要求，如有不符請及時與廠家或經銷商聯系，以便及時處理。

請根據接線盒內的接線圖或者使用說明書與電源電纜進行連接。否則有可能會導致觸電和火災。

請勿過分彎曲、牽拉、夾持電源電纜以及電機導線。否則有可能會導致觸電。請將接地用端子切實接地。否則有可能會導致觸電。

請務必使用銘牌上記載的電源。否則有可能會損壞電機、引發火災。分體減速機電機

FA129R89減速電機型號：

YQFA127R87-Y11KW，YQFA127R87-Y132M4，YQFA127R87-Y160M4，YQFA127R87-Y5.5KW，YQFA127R87-Y7.5KW，YQFA127RF87-Y132M4，YQFA127RF87-Y160M4，YQFA127RF87-YB132M4，YQFA127RF87-YB160M4，YQFA127RF87-YDP132M4，YQFA127RF87-YDP160M4，YQFA127RF87-YE132M4，YQFA127RF87-YE160M4，YQFA127RF87-YEJ132M4，YQFA127RF87-YEJ160M4，YQFA127RF87-YEJB132M4，YQFA127RF87-YEJB160M4，YQFA127RF87-YP132M4，YQFA127RF87-YP160M4，YQFA127RF87-YPB132M4，YQFA127RF87-YPB160M4，YQFA127RF87-YPE132M4，YQFA127RF87-YPE160M4，YQFA127RF87-YS132M4，YQFA127RF87-YS160M4，YQFA127RF87-YVB132M4，YQFA127RF87-YVB160M4，YQFA127RF87-YVP132M4，YQFA127RF87-YVP160M4，YQFA127RF87-YVPEJ132M4，YQFA127RF87-YVPEJ160M4，NFA127R87-Y11KW，NFA127R87-Y132M4，NFA127R87-Y160M4，NFA127R87-Y5.5KW，NFA127R87-Y7.5KW，NFA127RF87-Y132M4，NFA127RF87-Y160M4，NFA127RF87-YB132M4，NFA127RF87-YB160M4，NFA127RF87-YDP132M4，NFA127RF87-YDP160M4，NFA127RF87-YE132M4，NFA127RF87-YE160M4，NFA127RF87-YEJ132M4，NFA127RF87-YEJ160M4，NFA127RF87-YEJB132M4，NFA127RF87-YEJB160M4，NFA127RF87-YP132M4，NFA127RF87-YP160M4，NFA127RF87-YPB132M4，NFA127RF87-YPB160M4，NFA127RF87-YPE132M4，NFA127RF87-YPE160M4，NFA127RF87-YS132M4，NFA127RF87-YS160M4，NFA127RF87-YVB132M4，NFA127RF87-YVB160M4，NFA127RF87-YVP132M4，NFA127RF87-YVP160M4，NFA127RF87-YVPEJ132M4，NFA127RF87-YVPEJ160M4，AFA127R87-Y11KW，AFA127R87-Y132M4，AFA127R87-Y160M4，AFA127R87-Y5.5KW，AFA127R87-Y7.5KW，AFA127RF87-Y132M4，AFA127RF87-Y160M4，AFA127RF87-YB132M4，AFA127RF87-YB160M4，AFA127RF87-YDP132M4，AFA127RF87-YDP160M4，AFA127RF87-YE132M4，AFA127RF87-YE160M4，AFA127RF87-YEJ132M4，AFA127RF87-YEJ160M4，AFA127RF87-YEJB132M4，AFA127RF87-YEJB160M4，AFA127RF87-YP132M4，AFA127RF87-YP160M4，AFA127RF87-YPB132M4，AFA127RF87-YPB160M4，AFA127RF87-YPE132M4，AFA127RF87-YPE160M4，AFA127RF87-YS132M4，AFA127RF87-YS160M4，AFA127RF87-YVB132M4，AFA127RF87-YVB160M4，AFA127RF87-YVP132M4，AFA127RF87-YVP160M4，AFA127RF87-YVPEJ132M4，AFA127RF87-YVPEJ160M4，XDFA127R87-Y11KW，XDFA127R87-Y132M4，XDFA127R87-Y160M4，XDFA127R87-Y5.5KW，XDFA127R87-Y7.5KW，XDFA127RF87-Y132M4，XDFA127RF87-Y160M4，XDFA127RF87-YB132M4，XDFA127RF87-YB160M4，XDFA127RF87-YDP132M4，XDFA127RF87-YDP160M4，XDFA127RF87-YE132M4，XDFA127RF87-YE160M4，XDFA127RF87-YEJ132M4，XDFA127RF87-YEJ160M4，XDFA127RF87-YEJB132M4，XDFA127RF87-YEJB160M4，XDFA127RF87-YP132M4，XDFA127RF87-YP160M4，XDFA127RF87-YPB132M4，XDFA127RF87-YPB160M4，XDFA127RF87-YPE132M4，XDFA127RF87-YPE160M4，XDFA127RF87-YS132M4，XDFA127RF87-YS160M4，XDFA127RF87-YVB132M4，XDFA127RF87-YVB160M4，XDFA127RF87-YVP132M4，XDFA127RF87-YVP160M4，XDFA127RF87-YVPEJ132M4，XDFA127RF87-YVPEJ160M4，JCFA127R87-Y11KW，JCFA127R87-Y132M4，JCFA127R87-Y160M4，JCFA127R87-Y5.5KW，JCFA127R87-Y7.5KW，JCFA127RF87-Y132M4，JCFA127RF87-Y160M4，JCFA127RF87-YB132M4，JCFA127RF87-YB160M4，JCFA127RF87-YDP132M4，JCFA127RF87-YDP160M4，JCFA127RF87-YE132M4，JCFA127RF87-YE160M4，JCFA127RF87-YEJ132M4，JCFA127RF87-YEJ160M4，JCFA127RF87-YEJB132M4，JCFA127RF87-YEJB160M4，JCFA127RF87-YP132M4，JCFA127RF87-YP160M4，JCFA127RF87-YPB132M4，JCFA127RF87-YPB160M4，JCFA127RF87-YPE132M4，JCFA127RF87-YPE160M4，JCFA127RF87-YS132M4，JCFA127RF87-YS160M4，JCFA127RF87-YVB132M4，JCFA127RF87-YVB160M4，JCFA127RF87-YVP132M4，JCFA127RF87-YVP160M4，JCFA127RF87-YVPEJ132M4，JCFA127RF87-YVPEJ160M4，SFA127R87-Y11KW，SFA127R87-Y132M4，SFA127R87-Y160M4，SFA127R87-Y5.5KW，SFA127R87-Y7.5KW，SFA127RF87-Y132M4，SFA127RF87-Y160M4，SFA127RF87-YB132M4，SFA127RF87-YB160M4，SFA127RF87-YDP132M4，SFA127RF87-YDP160M4，SFA127RF87-YE132M4，SFA127RF87-YE160M4，SFA127RF87-YEJ132M4，SFA127RF87-YEJ160M4，SFA127RF87-YEJB132M4，SFA127RF87-YEJB160M4，SFA127RF87-YP132M4，SFA127RF87-YP160M4，SFA127RF87-YPB132M4，SFA127RF87-YPB160M4，SFA127RF87-YPE132M4，SFA127RF87-YPE160M4，SFA127RF87-YS132M4，SFA127RF87-YS160M4，SFA127RF87-YVB132M4，SFA127RF87-YVB160M4，SFA127RF87-YVP132M4，SFA127RF87-YVP160M4，SFA127RF87-YVPEJ132M4，SFA127RF87-YVPEJ160M4，WFA127R87-Y11KW，WFA127R87-Y132M4，WFA127R87-Y160M4，WFA127R87-Y5.5KW，WFA127R87-Y7.5KW，WFA127RF87-Y132M4，WFA127RF87-Y160M4，WFA127RF87-YB132M4，WFA127RF87-YB160M4，WFA127RF87-YDP132M4，WFA127RF87-YDP160M4，WFA127RF87-YE132M4，WFA127RF87-YE160M4，WFA127RF87-YEJ132M4，WFA127RF87-YEJ160M4，WFA127RF87-YEJB132M4，WFA127RF87-YEJB160M4，WFA127RF87-YP132M4，WFA127RF87-YP160M4，WFA127RF87-YPB132M4，WFA127RF87-YPB160M4，WFA127RF87-YPE132M4，WFA127RF87-YPE160M4，WFA127RF87-YS132M4，WFA127RF87-YS160M4，WFA127RF87-YVB132M4，WFA127RF87-YVB160M4，WFA127RF87-YVP132M4，WFA127RF87-YVP160M4，WFA127RF87-YVPEJ132M4，WFA127RF87-YVPEJ160M4，F(xiàn)WA127RW87-Y11KW，F(xiàn)WA127RW87-Y132M4，F(xiàn)WA127RW87-Y160M4，F(xiàn)WA127RW87-Y5.5KW，F(xiàn)WA127RW87-Y7.5KW，F(xiàn)WA127RWFA87-Y132M4，F(xiàn)WA127RWFA87-Y160M4，F(xiàn)WA127RWFA87-YB132M4，F(xiàn)WA127RWFA87-YB160M4，F(xiàn)WA127RWFA87-YDP132M4，F(xiàn)WA127RWFA87-YDP160M4，F(xiàn)WA127RWFA87-YE132M4，F(xiàn)WA127RWFA87-YE160M4，F(xiàn)WA127RWFA87-YEJ132M4，F(xiàn)WA127RWFA87-YEJ160M4，F(xiàn)WA127RWFA87-YEJB132M4，F(xiàn)WA127RWFA87-YEJB160M4，F(xiàn)WA127RWFA87-YP132M4，F(xiàn)WA127RWFA87-YP160M4，F(xiàn)WA127RWFA87-YPB132M4，F(xiàn)WA127RWFA87-YPB160M4，F(xiàn)WA127RWFA87-YPE132M4，F(xiàn)WA127RWFA87-YPE160M4，F(xiàn)WA127RWFA87-YS132M4，F(xiàn)WA127RWFA87-YS160M4，F(xiàn)WA127RWFA87-YVB132M4，F(xiàn)WA127RWFA87-YVB160M4，F(xiàn)WA127RWFA87-YVP132M4，F(xiàn)WA127RWFA87-YVP160M4，F(xiàn)WA127RWFA87-YVPEJ132M4，F(xiàn)WA127RWFA87-YVPEJ160M4，F(xiàn)A129R89-Y11KW，F(xiàn)A129R89-Y132M4，F(xiàn)A129R89-Y160M4，F(xiàn)A129R89-Y5.5KW，F(xiàn)A129R89-Y7.5KW，F(xiàn)A129RF89-Y132M4，F(xiàn)A129RF89-Y160M4，F(xiàn)A129RF89-YB132M4，F(xiàn)A129RF89-YB160M4，F(xiàn)A129RF89-YDP132M4，F(xiàn)A129RF89-YDP160M4，F(xiàn)A129RF89-YE132M4，F(xiàn)A129RF89-YE160M4，F(xiàn)A129RF89-YEJ132M4，F(xiàn)A129RF89-YEJ160M4，F(xiàn)A129RF89-YEJB132M4，F(xiàn)A129RF89-YEJB160M4，F(xiàn)A129RF89-YP132M4，F(xiàn)A129RF89-YP160M4，F(xiàn)A129RF89-YPB132M4，F(xiàn)A129RF89-YPB160M4，F(xiàn)A129RF89-YPE132M4，F(xiàn)A129RF89-YPE160M4，F(xiàn)A129RF89-YS132M4，F(xiàn)A129RF89-YS160M4，F(xiàn)A129RF89-YVB132M4，F(xiàn)A129RF89-YVB160M4，F(xiàn)A129RF89-YVP132M4，F(xiàn)A129RF89-YVP160M4，F(xiàn)A129RF89-YVPEJ132M4，F(xiàn)A129RF89-YVPEJ160M4。

FA129R89減速電機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.xmsegu.com.cn/product/list-faxiliejiansuji-cn.html

推薦型號：F129減速機
